• Swing Over Bed 28"
• Working Length 24" (45")
• Cross Slide Travel (X) 10.5"
• Number of Turret Positions 12
• Turret Index Time (one tool) 1 sec
• Spindle Bore 3.4"
• Hydraulic Chuck Size 10" (12")
• Spindle HP (Peak) 60
• Quill Diameter 3.15"

• Max Turning Diameter 18"
• Distance Between Centers 22" (47")
• Longitudinal Travel (Z) 24" (45")
• Turret Tooling Size 1"
• Spindle Nose A2-8
• Bar Capacity 3.0" (4.0")
• Spindle Speed (RPM) 50 - 3,500
• Quill Travel 4.0"
• Quill Taper Hole MT-5

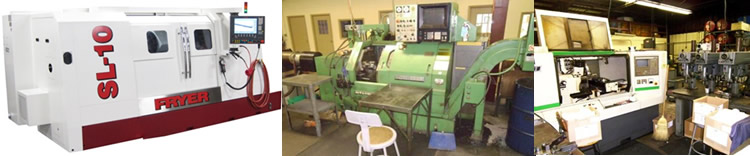

The Fryer SL Series features box ways and a true 45° slant bed for greater rigidity. An ultra precision spindle cartridge, C1 class double nut ballscrews and other premium components provide accuracy unmatched by any other lathe in this class. The Touch 2100 digital CNC is incredibly easy to use and features fast set and conversational programming with live tooling. The SL series is the perfect choice for shops requiring high rigidity, accuracy and ease of use.
